DIN40ER25160 - DIN40 ER25 160 COLLET CHUCK

DIN 698871 (ISO7388-1) AD&B Balanced G6.3

DIN40 ER25 160 COLLET CHUCK

• Collet Type and Ø Clamping Rance: ER25 160  Ø1-20mm
• Coolant Type: AD&B
• Balance: G6.3

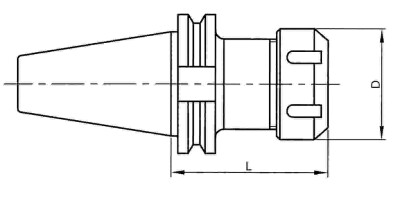

• L: 160mm
• D: 42mm
• Locknut Type and Code: ER25 Standart - NER25S
• Spanner Type and Code: ER25 Standart - SPER25S (Sold Separately)
• Pull Stud: M16 (Sold Separately)
• Pack of: 1 Pce
• G2.5 Balanced Available on Request
• Brand: Gürkan
