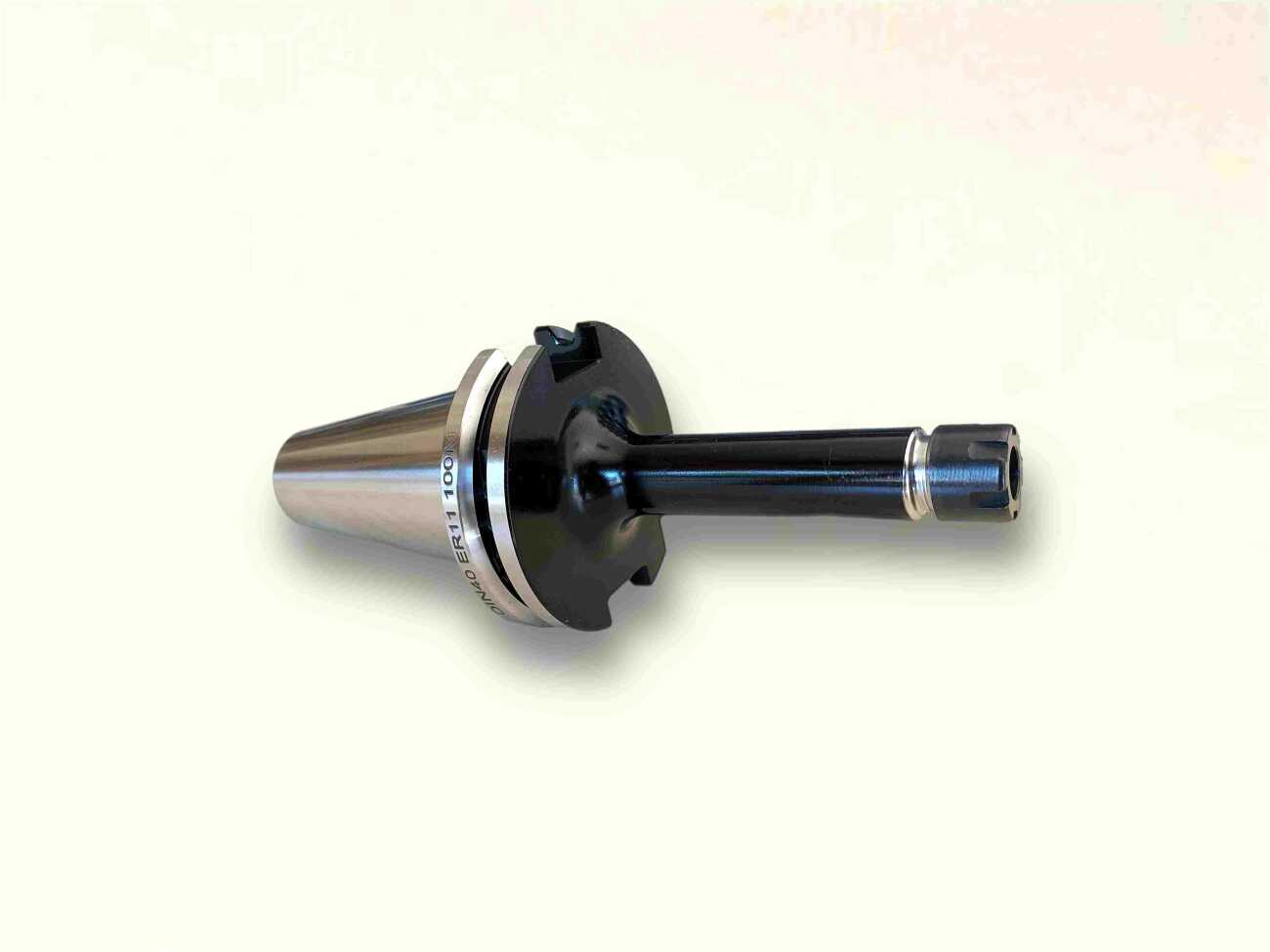

DIN40ER11100 - DIN40 ER11 100M COLLET CHUCK

DIN 698871 (ISO7388-1) AD&B Balanced G6.3

DIN40 ER11 100 COLLET CHUCK

• Collet Type and Ø Clamping Rance: ER11 100  Ø1-8mm
• Coolant Type: AD&B
• Balance: G6.3

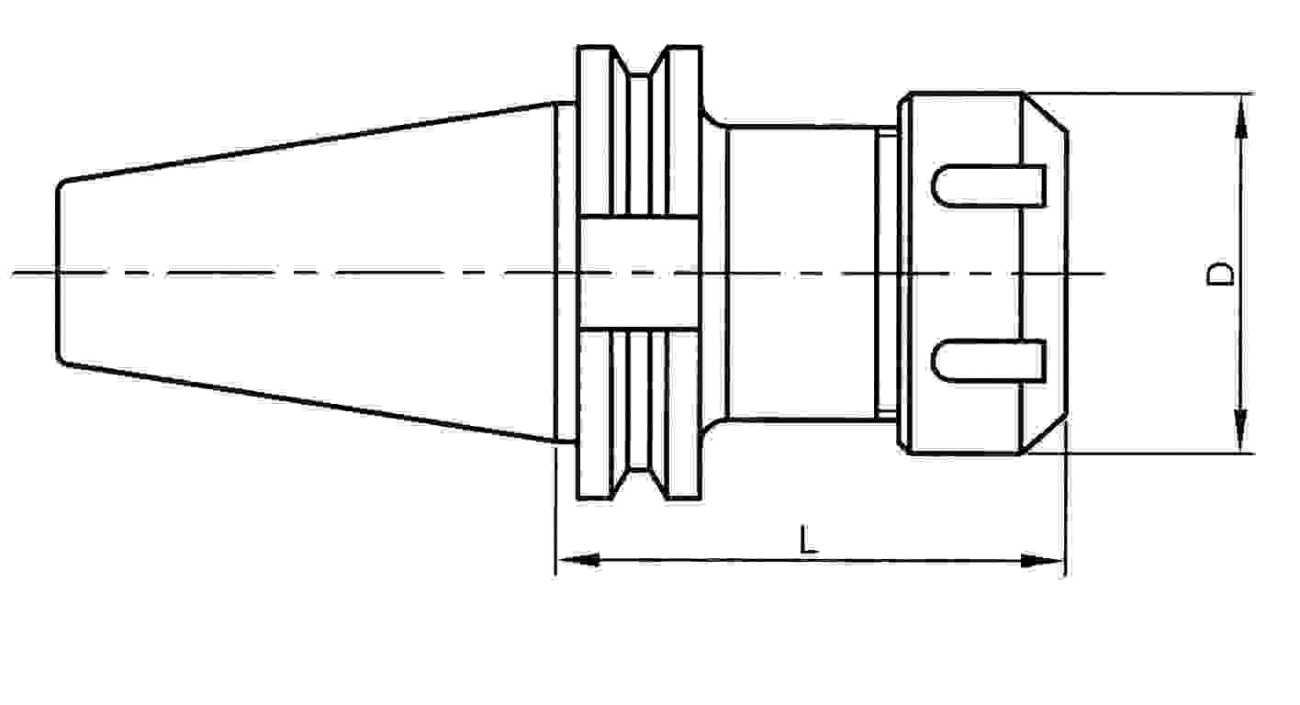

• L: 100mm
• D: 16mm
• Locknut Type and Code: ER11 Mini - NER11M
• Spanner Type and Code: ER11 Mini - SPER11M (Sold Separately)
• Pull Stud: M16 (Sold Separately)
• Pack of: 1 Pce
• G2.5 Balanced Available on Request
• Brand: Gürkan
