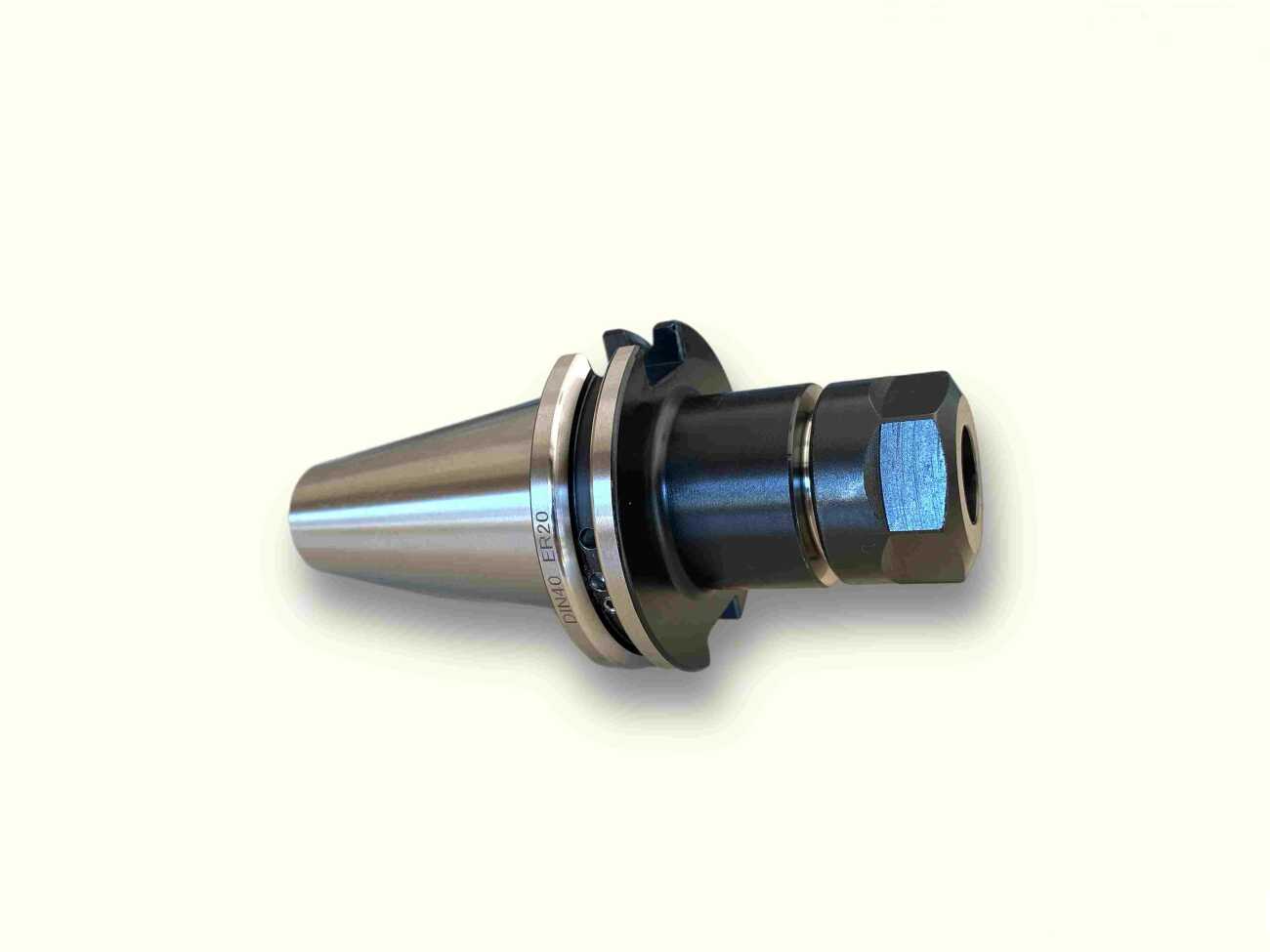

DIN40ER20 - DIN40 ER20 COLLET CHUCK

DIN 698871 (ISO7388-1) AD&B Balanced G6.3

DIN40 ER20 COLLET CHUCK

• Collet Type and Ø Clamping Rance: ER20  Ø2-16mm
• Coolant Type: AD&B
• Balance: G6.3

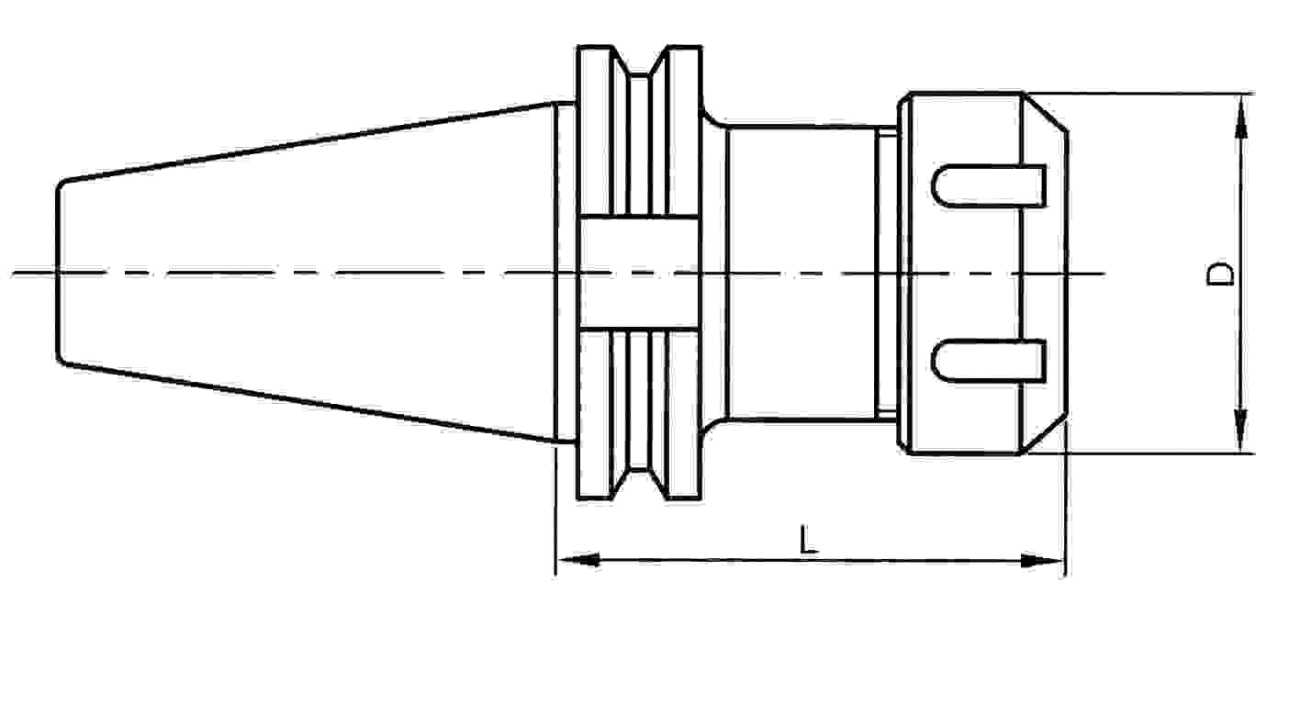

• L: 70mm
• D: 34mm
• Locknut Type and Code: ER20 Standart - NER20S
• Spanner Type and Code: ER20 Standart - SPER20S (Sold Separately)
• Pull Stud: M16 (Sold Separately)
• Pack of: 1 Pce
• G2.5 Balanced Available on Request
• Brand: Gürkan
