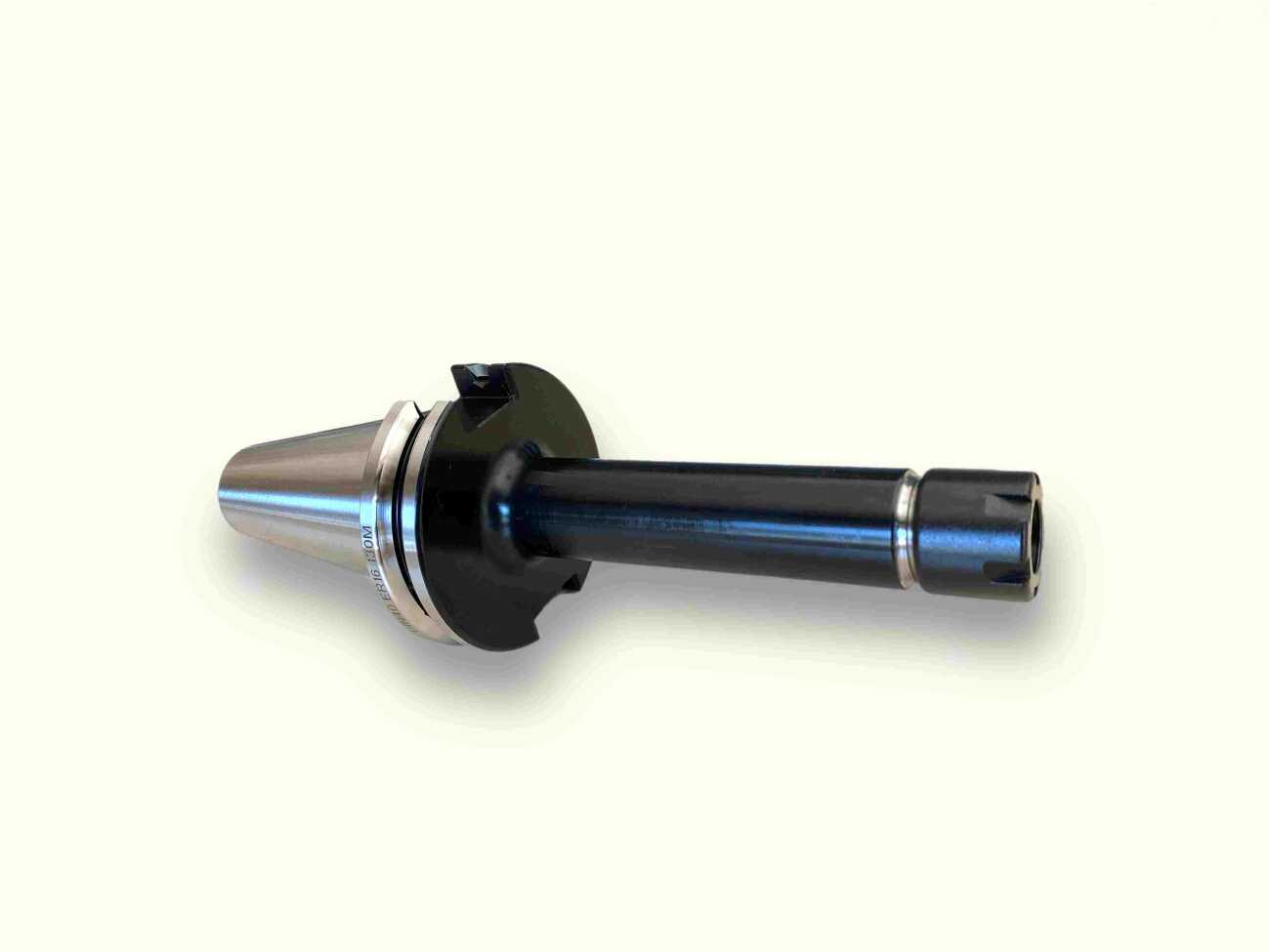

DIN40ER16130 - DIN40 ER16 130M COLLET CHUCK

DIN 698871 (ISO7388-1) AD&B Balanced G6.3

DIN40 ER16 130 COLLET CHUCK

• Collet Type and Ø Clamping Rance: ER16 130  Ø1-12mm
• Coolant Type: AD&B
• Balance: G6.3

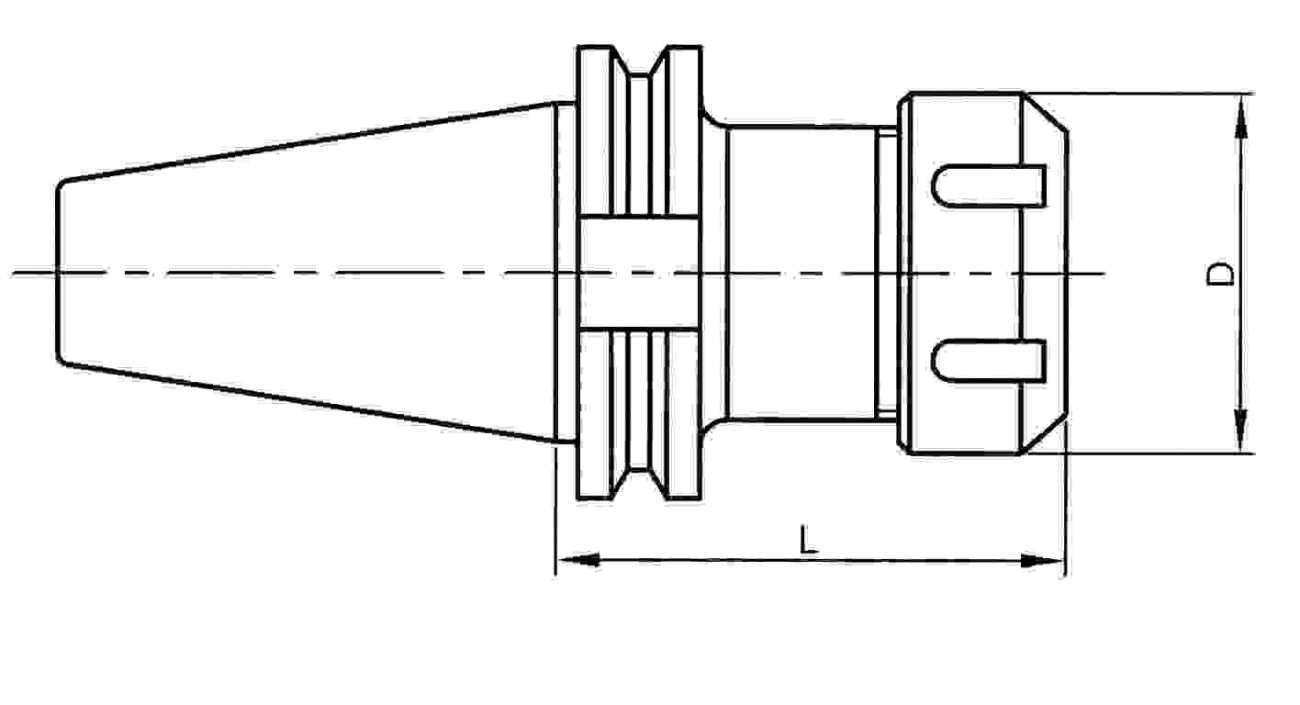

• L: 130mm
• D: 22mm
• Locknut Type and Code: ER16 Mini - NER16M
• Spanner Type and Code: ER16 Mini - SPER16M (Sold Separately)
• Pull Stud: M16 (Sold Separately)
• Pack of: 1 Pce
• G2.5 Balanced Available on Request
• Brand: Gürkan
