DIN30ER16 - DIN30 ER16 COLLET CHUCK

DIN 698871 (ISO7388-1) AD&B Balanced G6.3

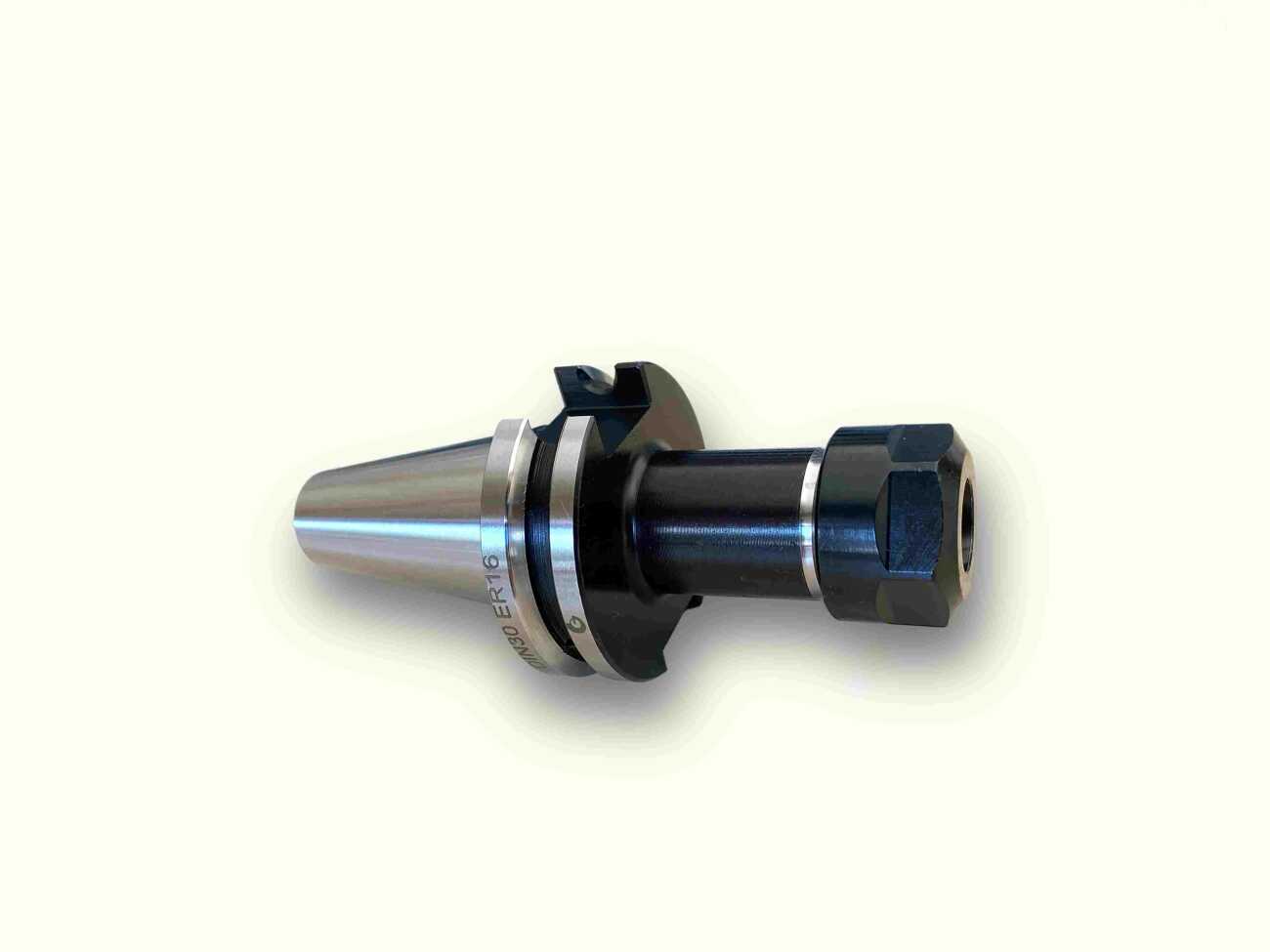

DIN30 ER16 COLLET CHUCK

• Collet Type and Ø Clamping Rance: ER16  Ø1-12.5mm
• Coolant Type: AD&B
• Balance: G6.3

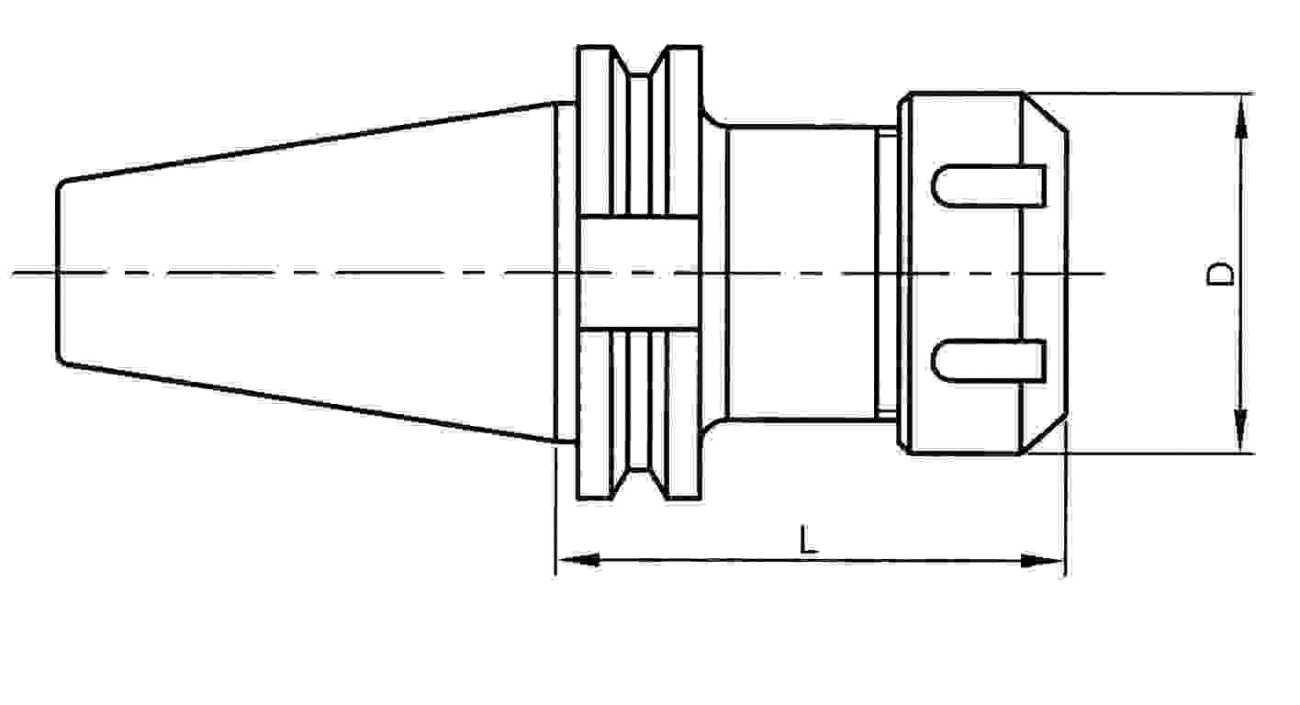

• L: 60mm
• D: 28mm
• Locknut Type and Code: ER16 Hexagon - NER16H
• Spanner Type and Code: ER16 Hexagon - SPER16H (Sold Separately)
• Pull Stud: M12 (Sold Separately)
• Pack of: 1 Pce
• G2.5 Balanced Available on Request
• Brand: Gürkan
