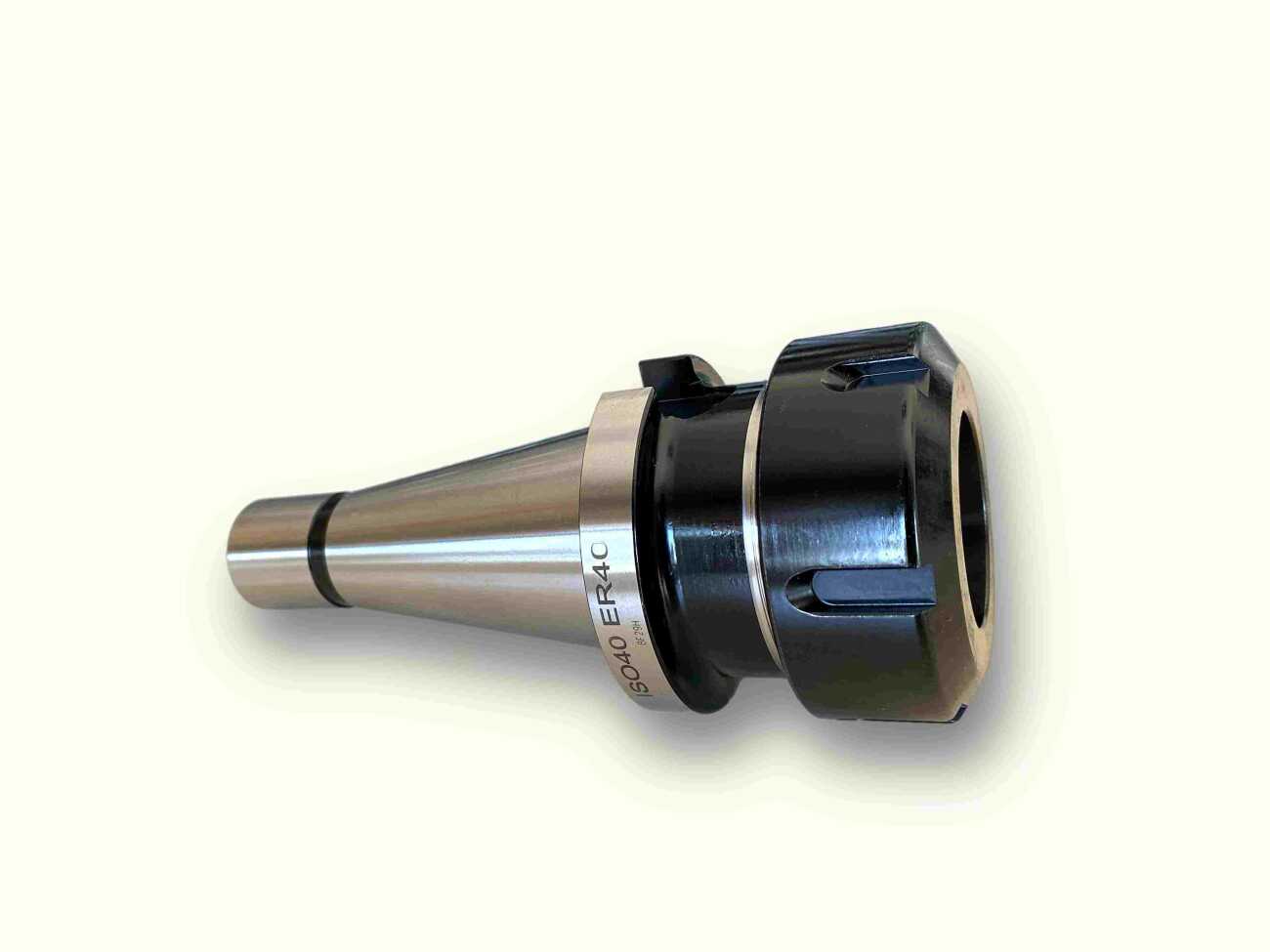

ISO40ER40 - ISO40 ER40 COLLET CHUCK

DIN 2080 ISO40 ER40 COLLET CHUCK

• Collet Type and Ø Clamping Range: ER40  Ø1-32mm

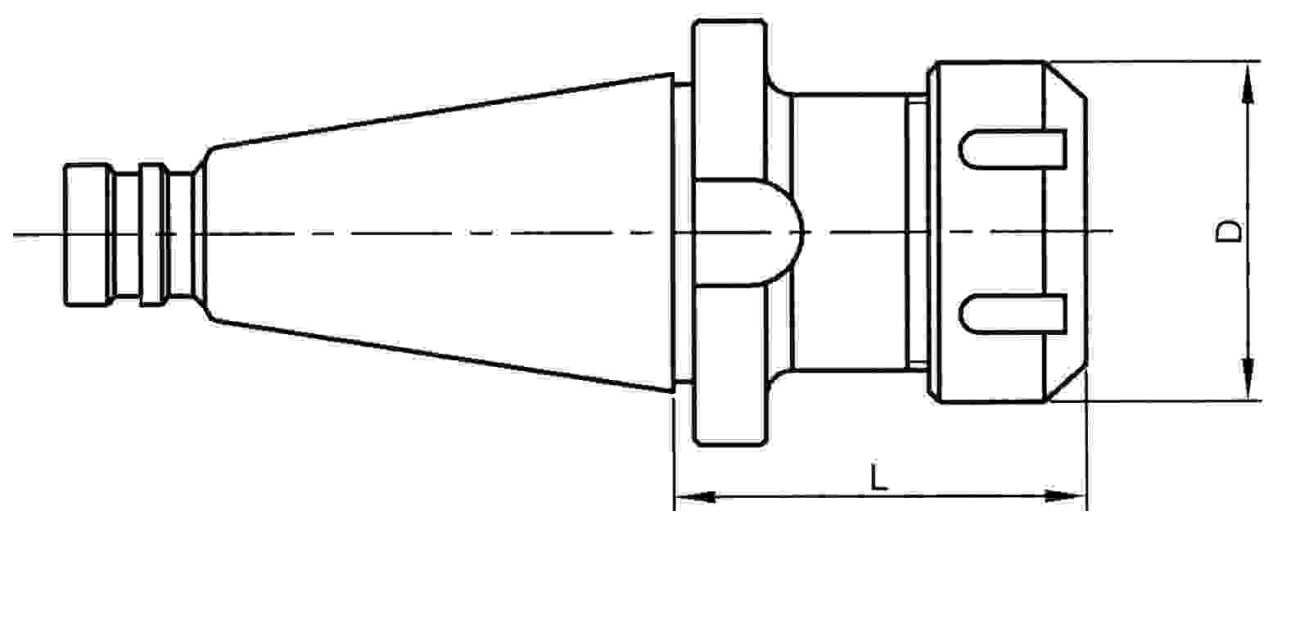

• L: 60mm
• D: 63mm
• Locknut Type and Code: ER40 Standart - NER40S
• Spanner Type and Code: ER40 Standart - NER40S (Sold Separately)
• Pull Stud: M16 (Sold Separately)
• Pack of: 1 Pce
• Brand: Gürkan
