DIN30ER32100 - DIN30 ER32 100 COLLET CHUCK

DIN 698871 (ISO7388-1) AD&B Balanced G6.3

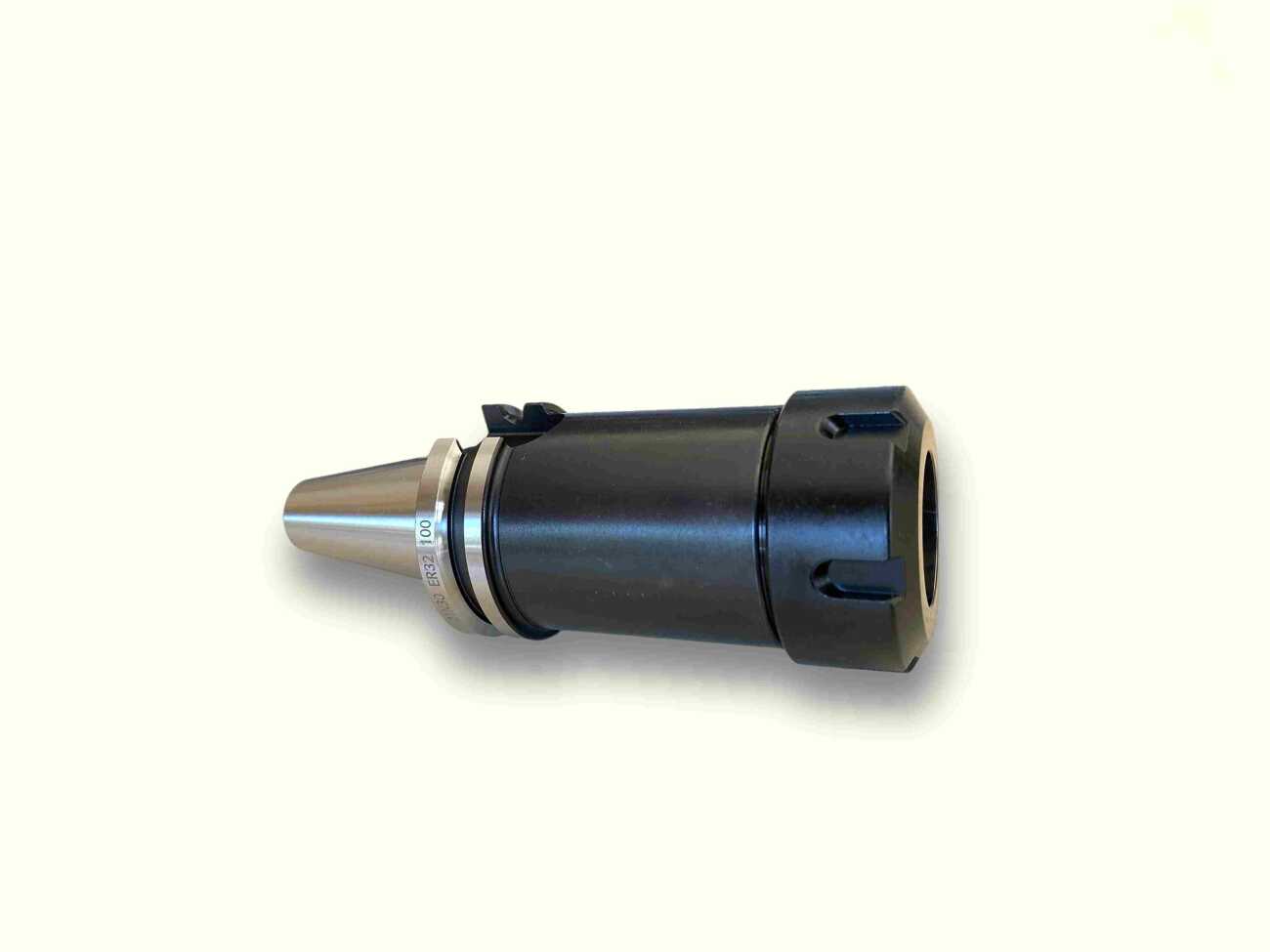

DIN30 ER32 100 COLLET CHUCK

• Collet Type and Ø Clamping Rance: ER32  Ø1-25mm
• Coolant Type: AD&B
• Balance: G6.3

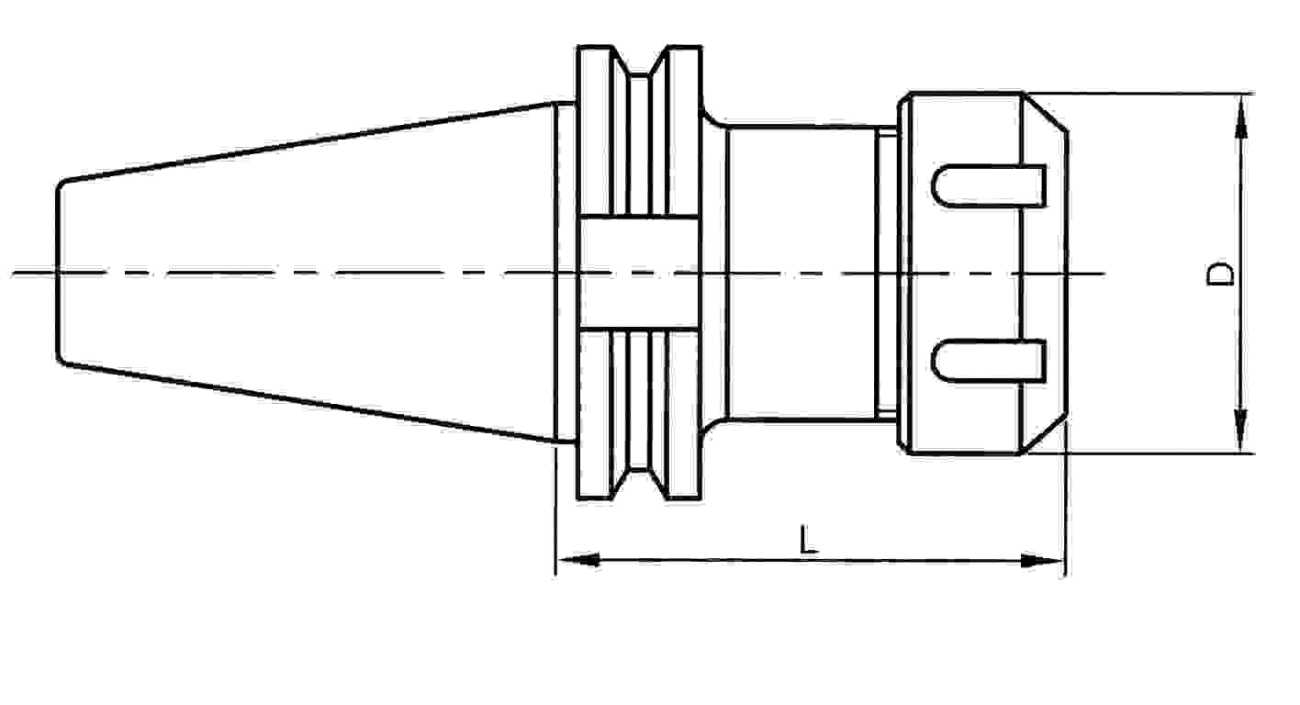

• L: 100mm
• D: 50mm
• Locknut Type and Code: ER32 Standart - NER32S
• Spanner Type and Code: ER32 Standart - SPER32S (Sold Separately)
• Pull Stud: M12 (Sold Separately)
• Pack of: 1 Pce
• G2.5 Balanced Available on Request
• Brand: Gürkan
