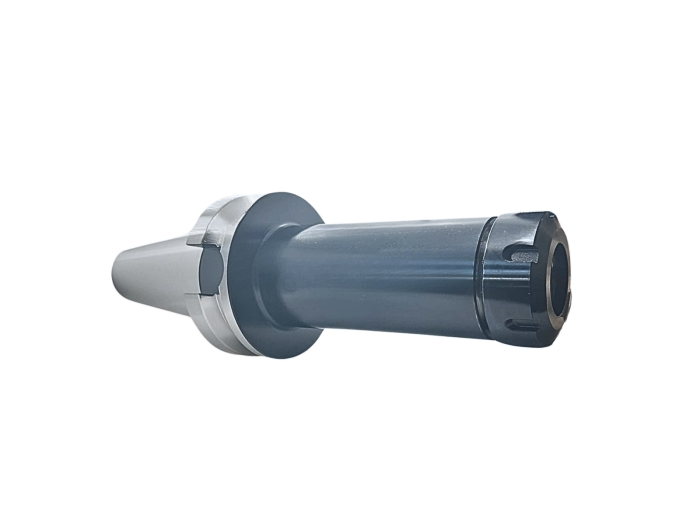

BT50ER40200 - BT50 ER40-200 COLLET CHUCK

BT50 ER40 200 Collet Chuck

• Collet Type and Ø Clamping Rance: ER40 200 Ø1-32mm
• Coolant Type: AD&B
• Balance: G6.3

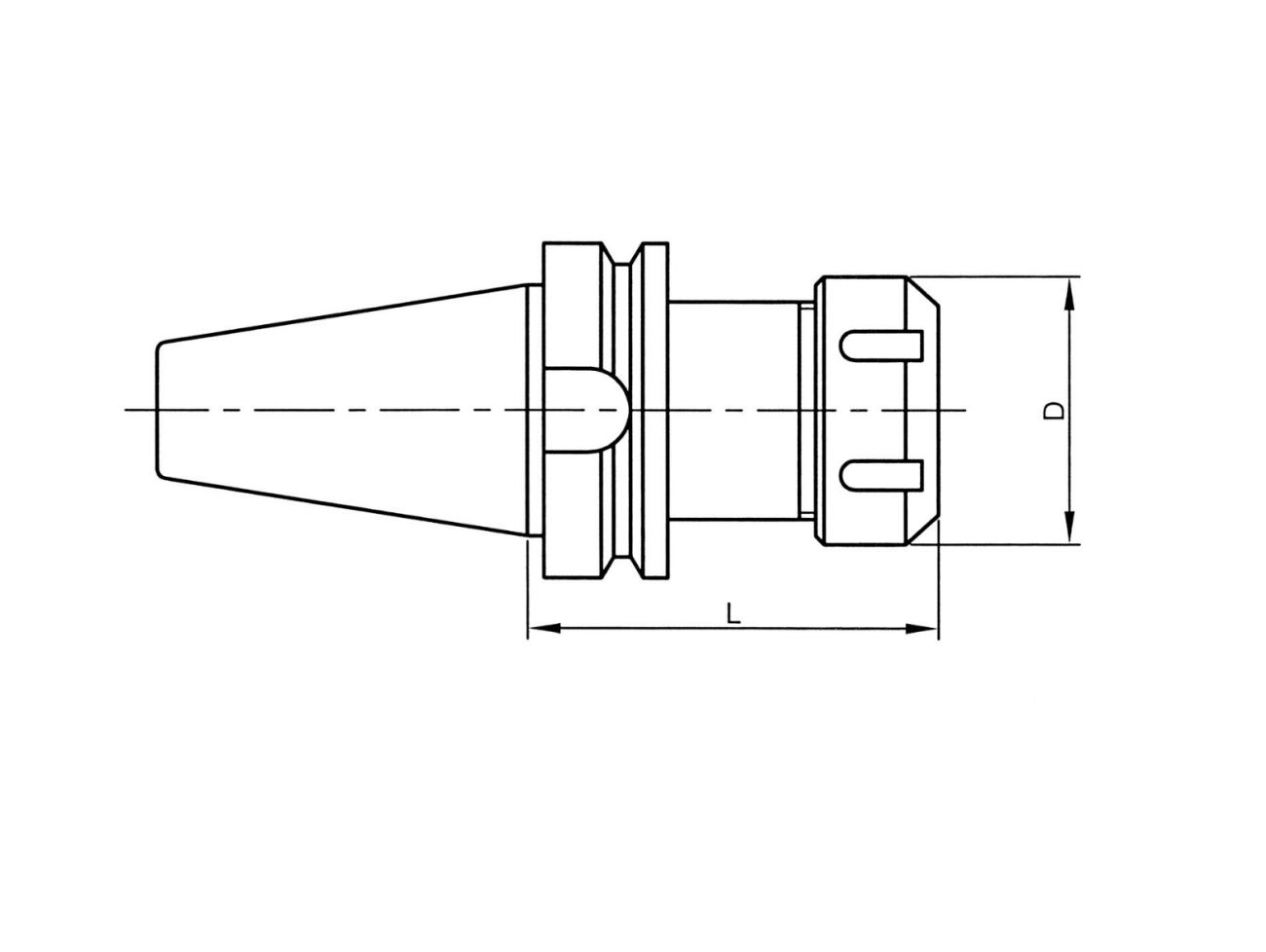

• D: 63mm
• L: 200mm
• Locknut Type and Code: ER40 Hexagon - NER40H
• Spanner Type and Code: SPER40 Hexagon - SPER40H (Sold Separately)
• Pull Stud: M16 (Sold Separately)
• Adjustable Stop Screw Inside The Chuck
• Pack of: 1 Pce
• G2.5 Balanced Available on Request
• Brand: Gürkan
