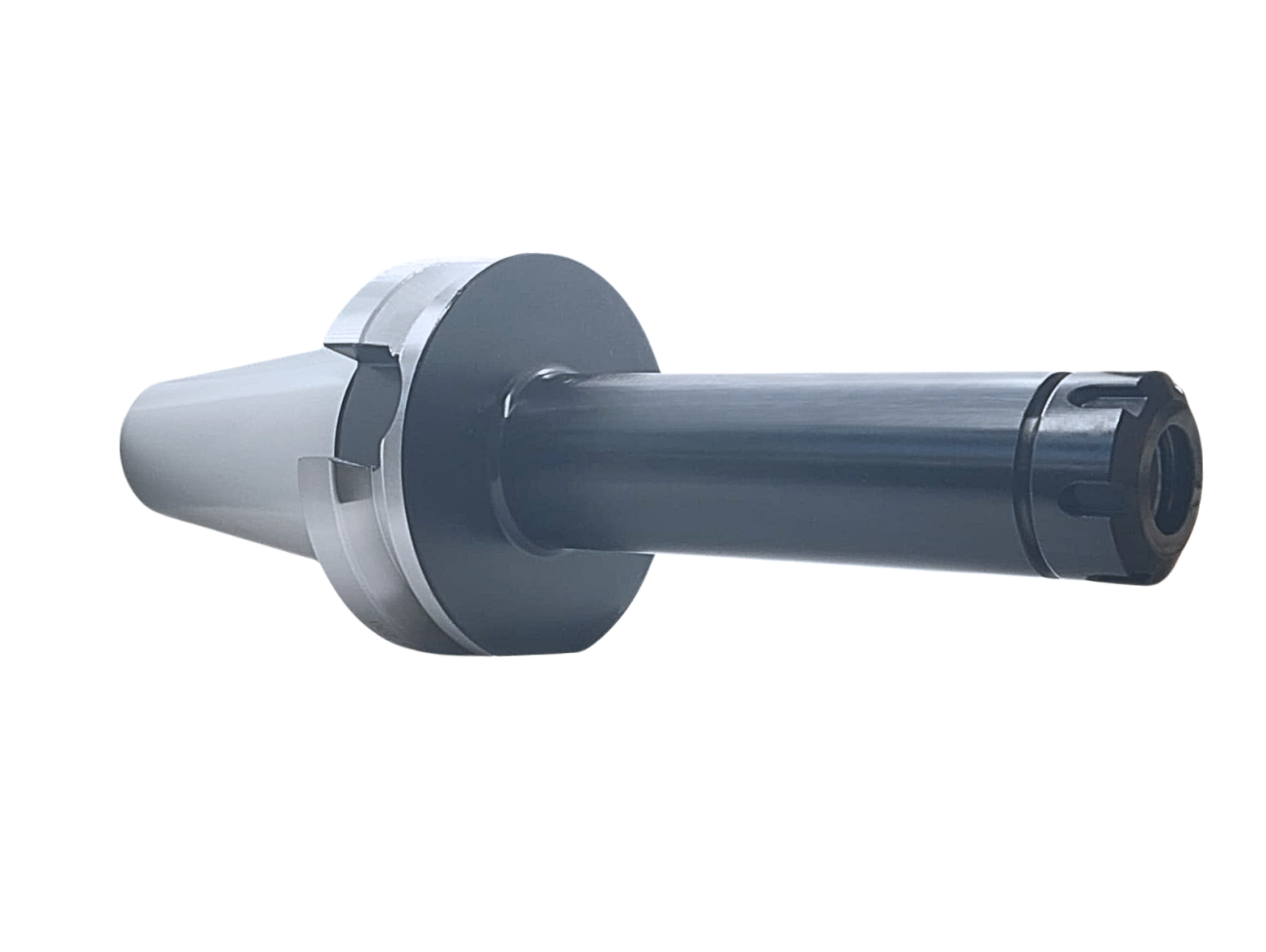

BT50ER25200 - BT50 ER25-200 COLLET CHUCK

BT50 ER25 200 Collet Chuck

• Collet Type and Ø Clamping Rance: ER25 200 Ø1-20mm
• Coolant Type: AD&B
• Balance: G6.3

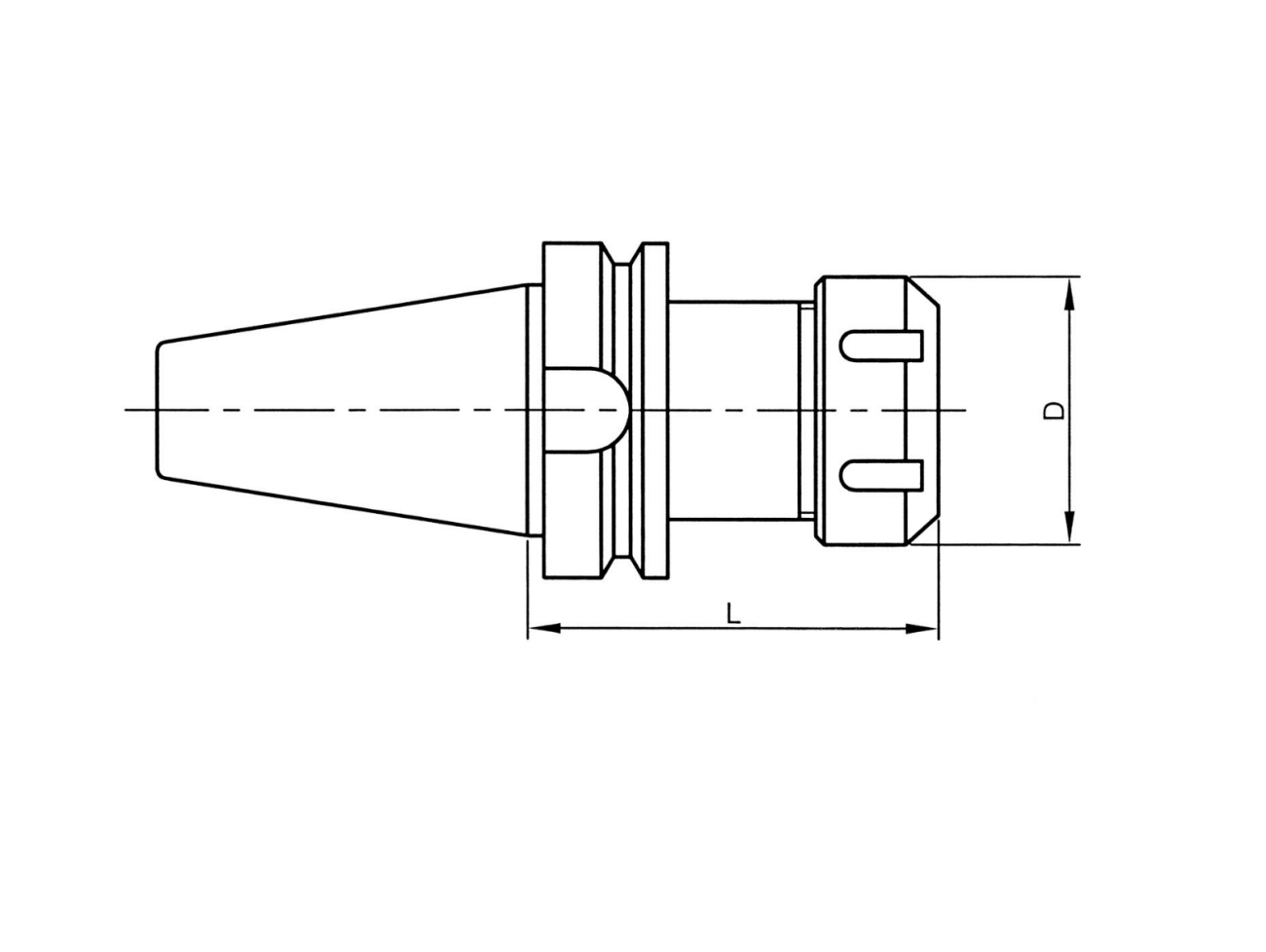

• D: 42mm
• L: 200mm
• Locknut Type and Code: ER25 Hexagon - NER25H
• Spanner Type and Code: SPER25 Hexagon - SPER25H (Sold Separately)
• Pull Stud: M16 (Sold Separately)
• Adjustable Stop Screw Inside The Chuck
• Pack of: 1 Pce
• G2.5 Balanced Available on Request
• Brand: Gürkan
