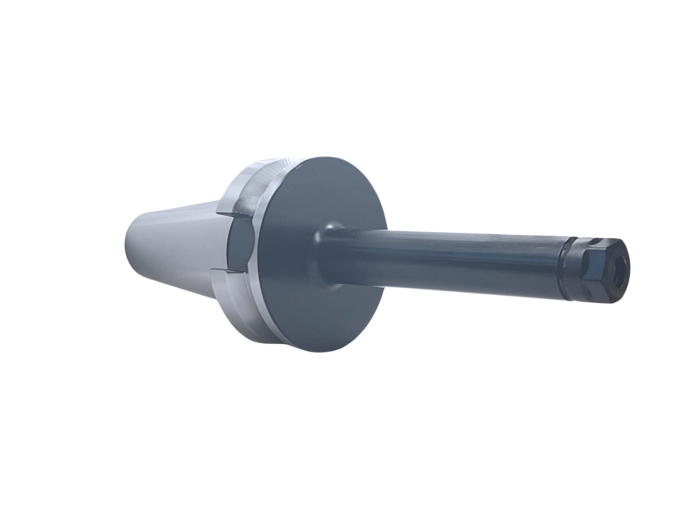

BT50ER16200 - BT50 ER16-200 COLLET CHUCK

BT50 ER16 200 Collet Chuck

• Collet Type and Ø Clamping Rance: ER16 200 Ø1-12.7mm
• Coolant Type: AD&B
• Balance: G6.3

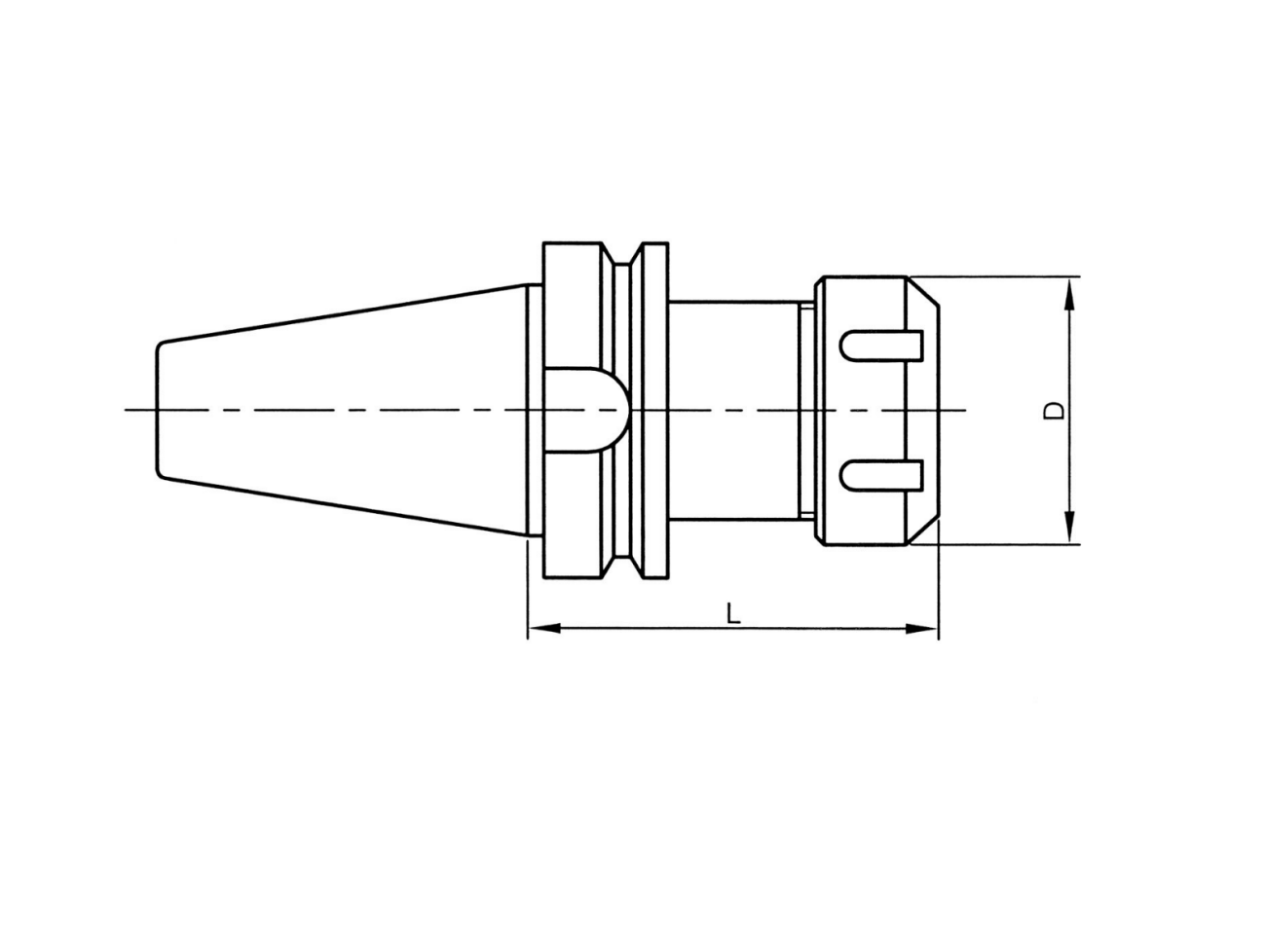

• D: 28mm
• L: 200mm
• Locknut Type and Code: ER16 Hexagon - NER16H
• Spanner Type and Code: SPER16 Hexagon - SPER16H (Sold Separately)
• Pull Stud: M16 (Sold Separately)
• Adjustable Stop Screw Inside The Chuck
• Pack of: 1 Pce
• G2.5 Balanced Available on Request
• Brand: Gürkan
