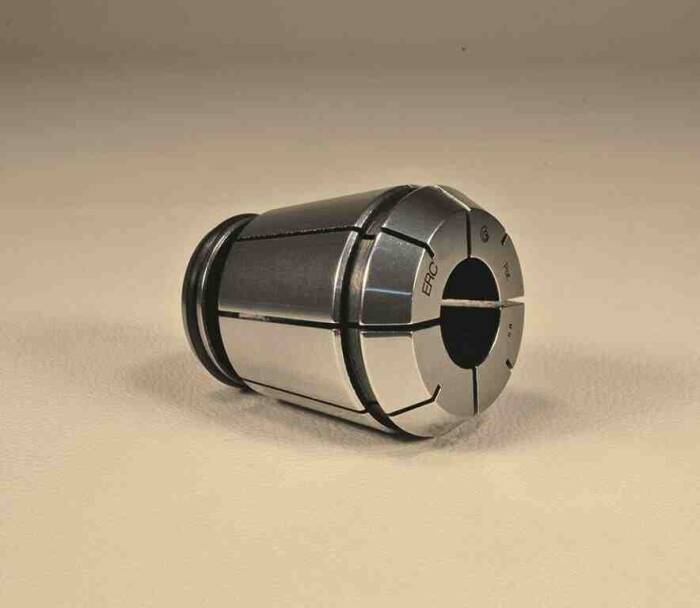

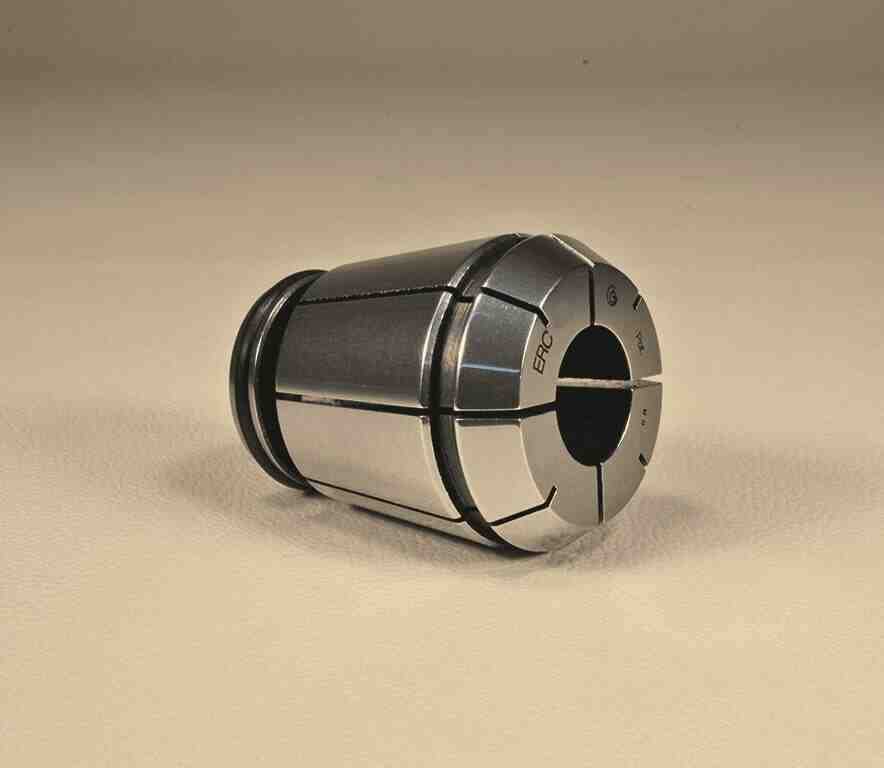

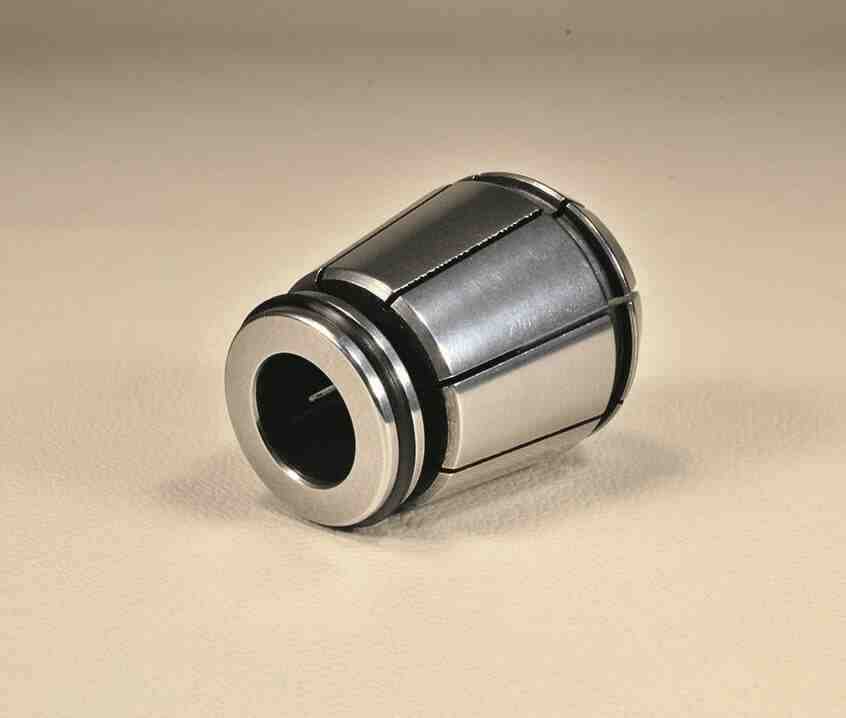

ERC200601 - ERC20 COOLANT SEALED ER COLLET 6MM CL1

ERC20 Collet Ø6mm Class 1

• Clamping Dia: Ø6mm
• Brand: Gürkan
• Accuracy: 0.010mm
• D: 20.5mm
• L: 31.5mm
• Pack of: 1 Pce
• Coolant Sealed performance is only achieved when clamped the nominal diameter.
• Suitable for all kinds of ER collet holders.
• May also be used as standart ER collet for the nominal diameter cutters without internal coolant.
• Less flexible with harder structure compared with standart ER collets.

Go to Catalogue Page;  (110 KB)

Gurkan General Tooling Catalogue 2023;   (16.72 MB)
