C2-40x25x85 - VDI40 TOOLHOLDER C2 25X85MM

VDI40 C2-40x25x85 AXIAL TOOLHOLDER LEFT

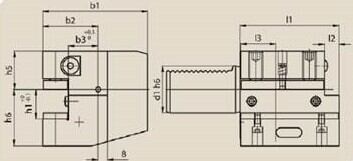

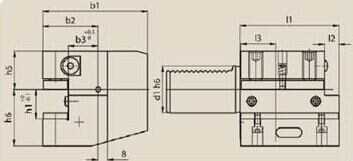

• VDI d1: VDI 40
• b1: 85mm
• b2: 42.5mm
• b3: 21mm
• h1: 25/20
• h5: 32.5mm
• h6: 48mm
• l1: 85mm
• l2: 12.5mm
• l3: 30mm
• Pack of: 1 Pce
• Brand: Gürkan

Go to Catalogue Page;   (117 KB)

Gurkan General Tooling Catalogue 2023;   (16.72 MB)
