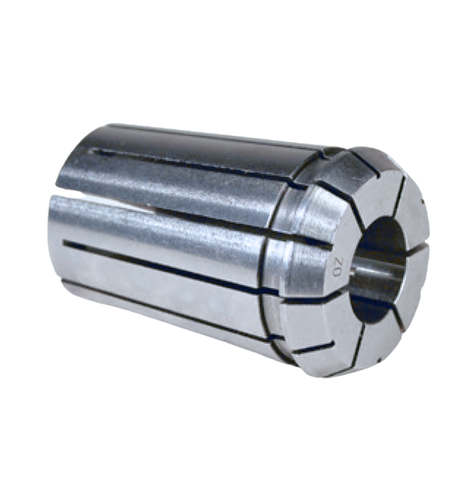

OZ403402 - DIN6388B-40 COLLET 34MM

OZ40 Collet Ø34mm CL 2

• Clamping Dia: Ø34mm
• Brand: Gürkan
• Accuracy: 0.015mm
• D: 52mm
• L: 68mm
• α: 20 51’45”
• β: 30°
• Pack of: 1 Pce.
• Form B OZ collets can clamp up to 0.5mm down from the its diameter, they are sloted from both sides.
