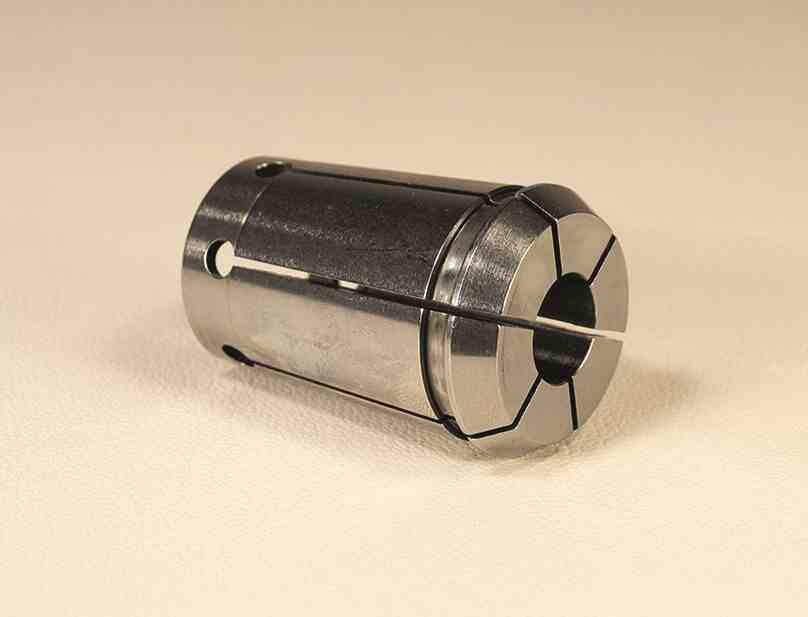

OZ32 COLLET DIN 6388 B-32 / ISO 10897-B* 467E 5MM

OZ32 Collet Ø5mm CL 2

• Clamping Dia: Ø5.0 - 4.5mm
• Brand: Gürkan
• Accuracy: 0.015mm
• D: 44mm
• L: 60mm
• α: 2°51'45"
• β: 30°
• Pack of: 1 Adet
• Form B OZ collets can clamp up to 0.5mm down from the its diameter, they are sloted from both sides.

Go to Catalogue Page;  (125 KB)

Gurkan General Tooling Catalogue 2023;   (16.72 MB)
