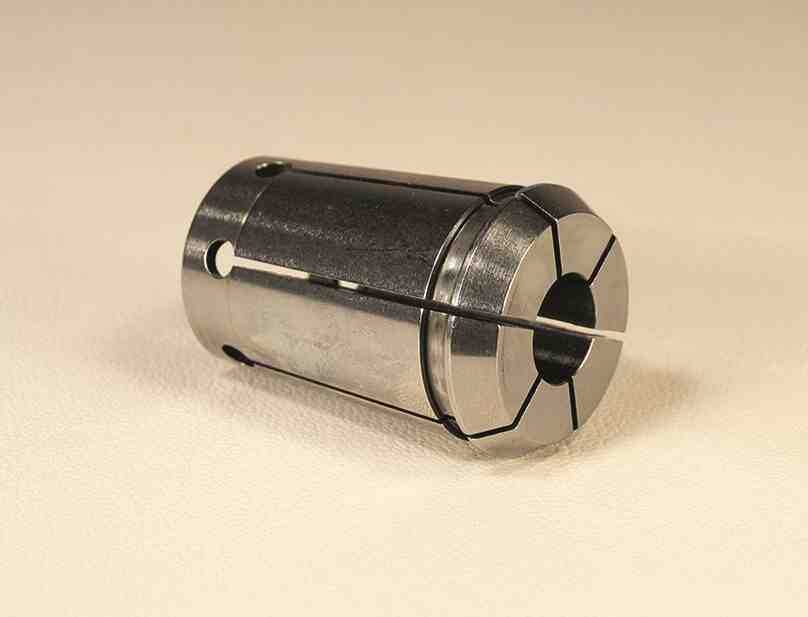

OZ32 COLLET DIN 6388 A-32 / ISO 10897-A* 450E 5MM

OZ32 Collet Ø5mm Class 2

• Clamping Dia: Ø5.0mm
• Brand: Gürkan
• Accuracy: 0.015mm
• D: 44mm
• L: 60mm
• α: 2°51'45"
• β: 30°
• Pack of: 1 Adet
• Form A OZ collets only clamps its nominal diameter, slotted from one side.
