OZ25 COLLET DIN 6388 B-25 / ISO 10897-B 462E

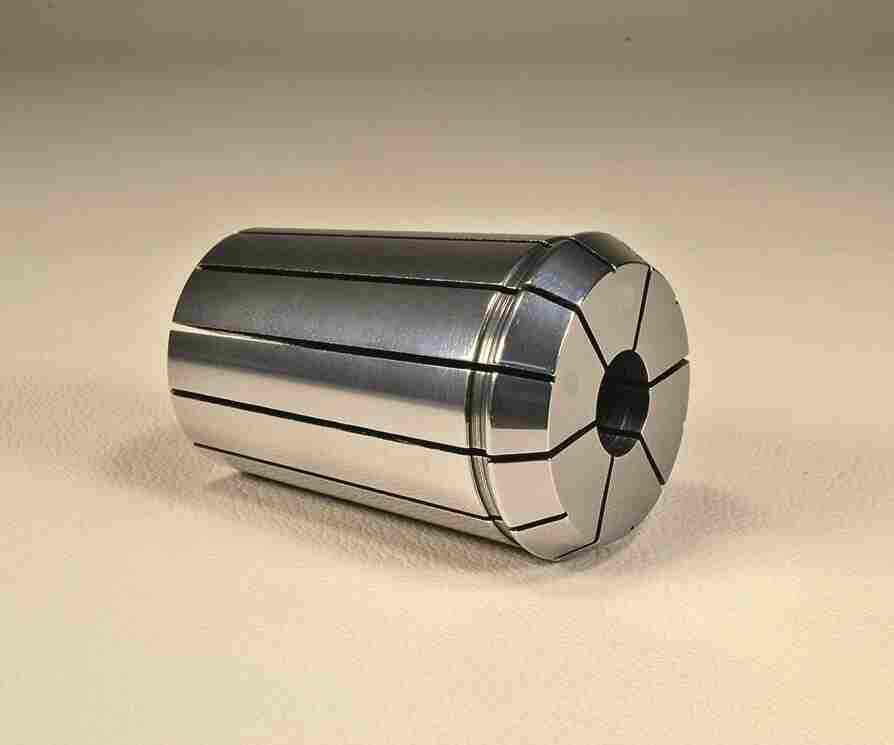

OZ25 Inch Sized Collet 5/8 Class 2

• Clamping Dia: 5/8"(15.88)
• Brand: Gürkan
• Accuracy: 0.015mm
• D: 35.05mm
• L: 52.0mm
• α: 2°51'45"
• β: 30°
• Pack Of: 1 Pce
• Form B OZ collets can clamp up to 0.5mm down from the its diameter, they are sloted from both sides

Go to Catalogue Page;  (121 KB)

Gurkan General Tooling Catalogue 2023;   (16.72 MB)
