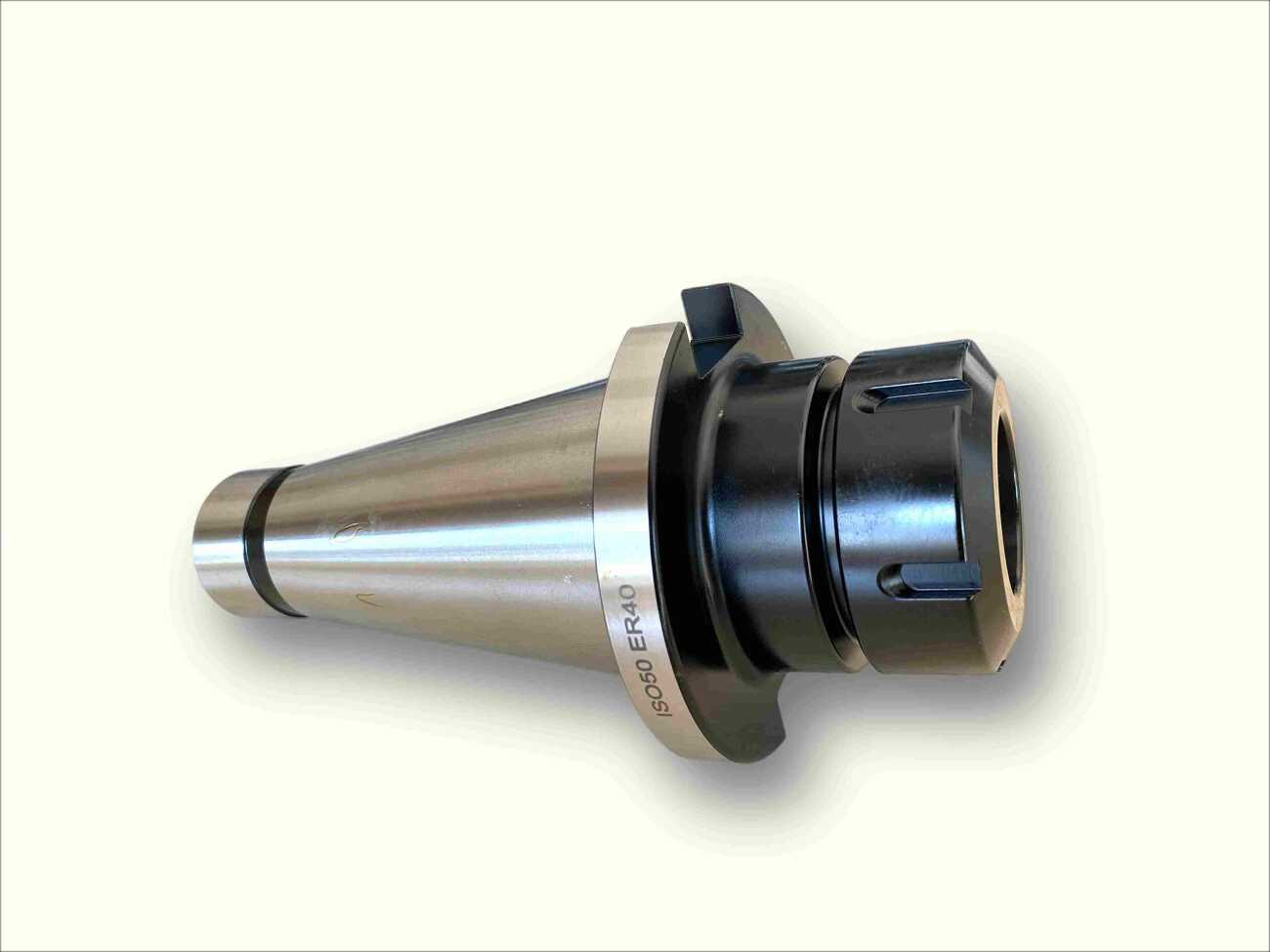

ISO50ER40 - ISO50 ER40 COLLET CHUCK

DIN 2080 ISO50 ER40 COLLET CHUCK

• Collet Type and Ø Clamping Range: ER40  Ø1-32mm

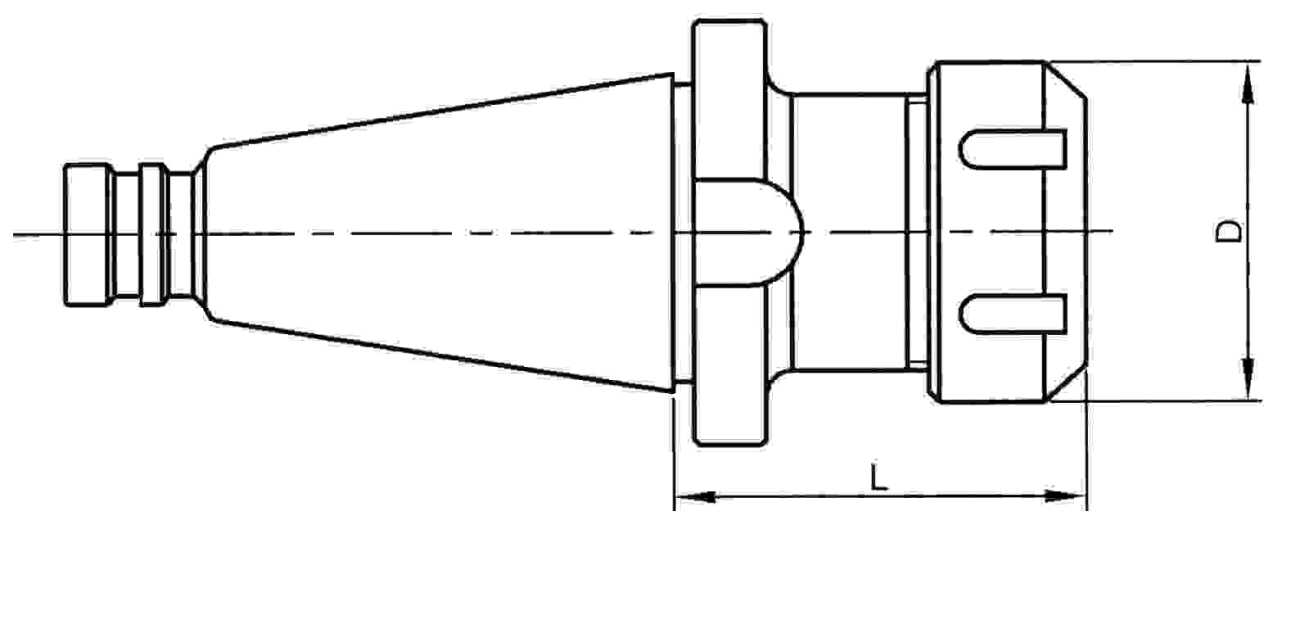

• L: 70mm
• D: 63mm
• Locknut Type and Code: ER40 Standart - NER40S
• Spanner Type and Code: ER40 Standart - NER40S (Sold Separately)
• Pull Stud: M24 (Sold Separately)
• Pack of: 1 Pce
• Brand: Gürkan

Go to Catalogue Page;   (104 KB)

Gurkan General Tooling Catalogue 2023;   (16.72 MB)
