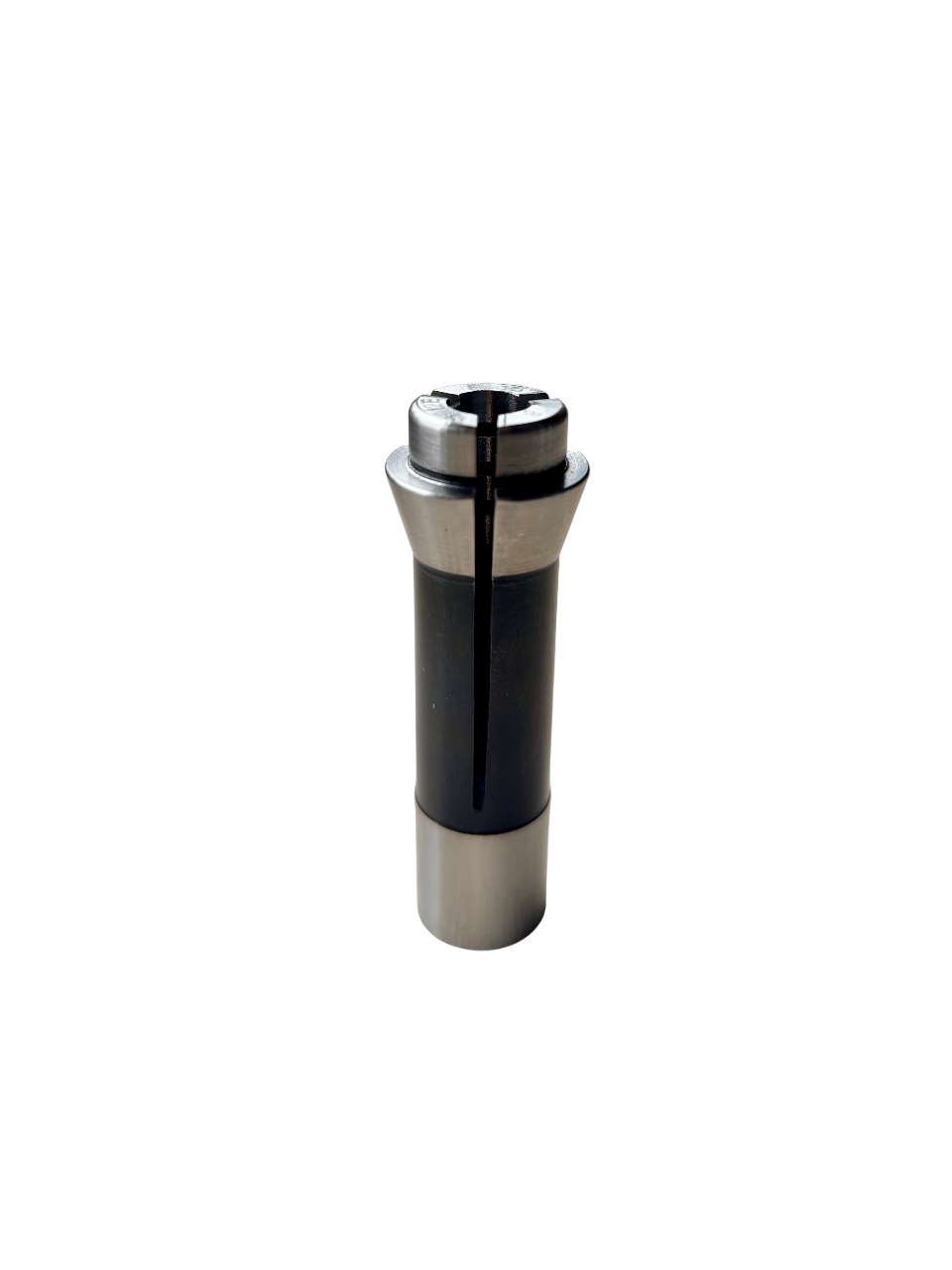

405F035RS - 405F DIN6343 COLLET 3.5MM SMOOTH

DIN6343 WORKHOLDING (DEAD LENGHT) COLLET

405F Ø 3.5mm Smooth

(F4.5)

• Bore (Clamping) Diameter: Ø 3.5mm
• Bore Type : Smooth

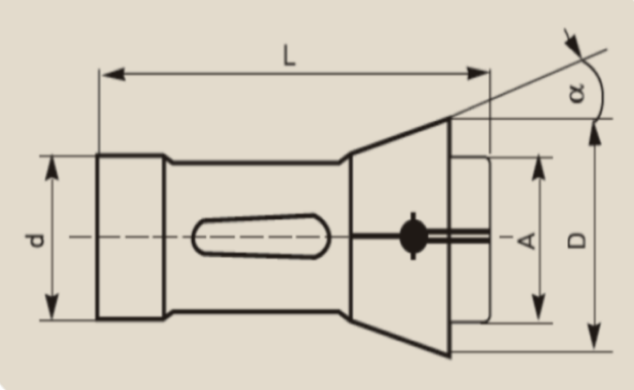

 Collet Overall Dimensions :

• d : 4.5mm
• D : 6.75mm
• A : 4.5mm
• L : 17.3mm
• α : 15°

• Pack Of : 1 Pce
• Brand : Gurkan

Go to Catalogue Page; (101 KB)

Gurkan General Tooling Catalogue 2023;   (16.72 MB)
