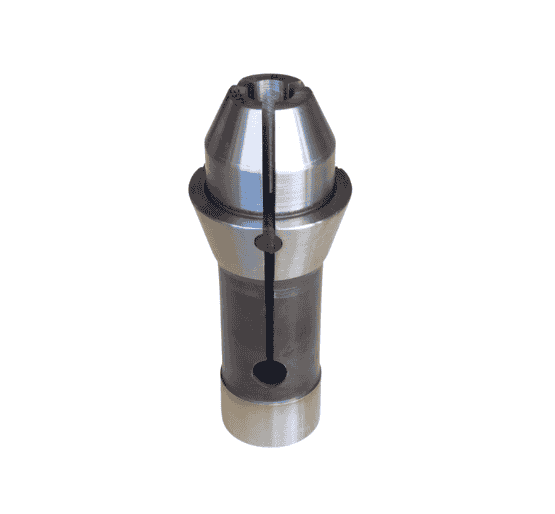

173E220RLS - 173E DIN6343 COLLET 22MM ROUND LONG SMOOTH

DIN6343 WORKHOLDING (DEAD LENGTH) LONG NOSE COLLET

173E Ø22mm Round Long Nose Smooth Bore
(F48)

Bore (Clamping) Diameter: Ø22mm
Bore Type: Round Long Nose Smooth Bore

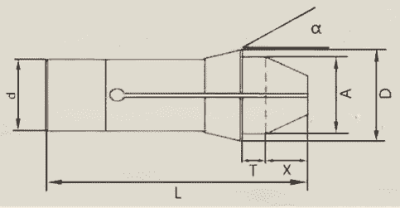

Nose Dimensions:

• T: 9mm

• X: 21mm

Collet Overall Dimensions:

• d: 48mm

• D: 60mm

• A: 50mm

• L: 124mm

• α: 15°

Pack Of: 1 Piece

Brand: Gürkan
