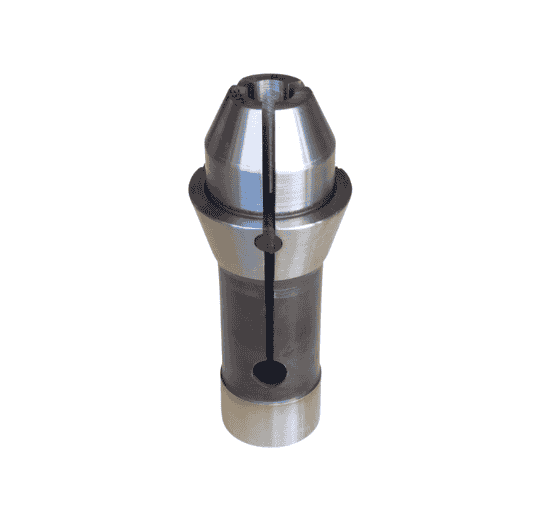

1536E040RLS - 1536E DIN6343 COLLET 4MM ROUND LONG SMOOTH

DIN6343 WORKHOLDING (DEAD LENGHT) COLLET

1536E Ø 4mm Round Long Smooth

(F37)

• Bore (Clamping) Diameter: Ø 4mm
• Bore Type : Round

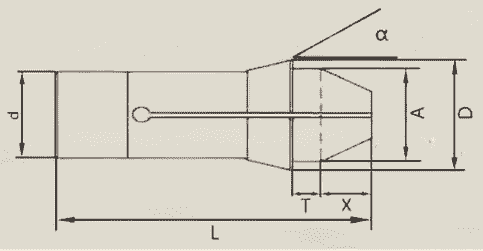

 Collet Overall Dimensions :

• d : 37
• D : 47mm
• A : 40mm
• L : 92mm
• α : 16°

• Pack Of : 1 Pce
• Brand : Gurkan

Go to Catalogue Page;  (95 KB)

Gurkan General Tooling Catalogue 2023;   (16.72 MB)
